Single-point dresser
Application: conventional grinding wheels
Carat size: 1/7 ct – 1 ct
Diamond setting: natural diamond, monocrystal, CVD
Dressing Tools
Diamond dressing rollers, cup dressers, and static dressers.
EHWA dressing tools maintain the profile, run-out, and cutting ability of grinding wheels over the entire tool life. The program ranges from diamond dressing rollers in various manufacturing methods to static single-point and multi-grain dressers.
Dressing rollers – types
RR
RP
IP1
IP2| Type | Manufacturing method | Diamond setting | Profile accuracy | Tool life |
|---|---|---|---|---|
| RR | Electroplated, negative process | Scattered – natural diamond | Very high | High |
| RP | Electroplated, negative process | Set (pattern) – natural diamond | High | High |
| IP1 | Sintered, hand-set | Set (pattern) – natural diamond | High | Very high |
| IP2 | Sintered, hand-set | Set (pattern) – CVD | Very high | High |
| NP | Electroplated, positive process | Scattered – natural diamond | Medium | High |

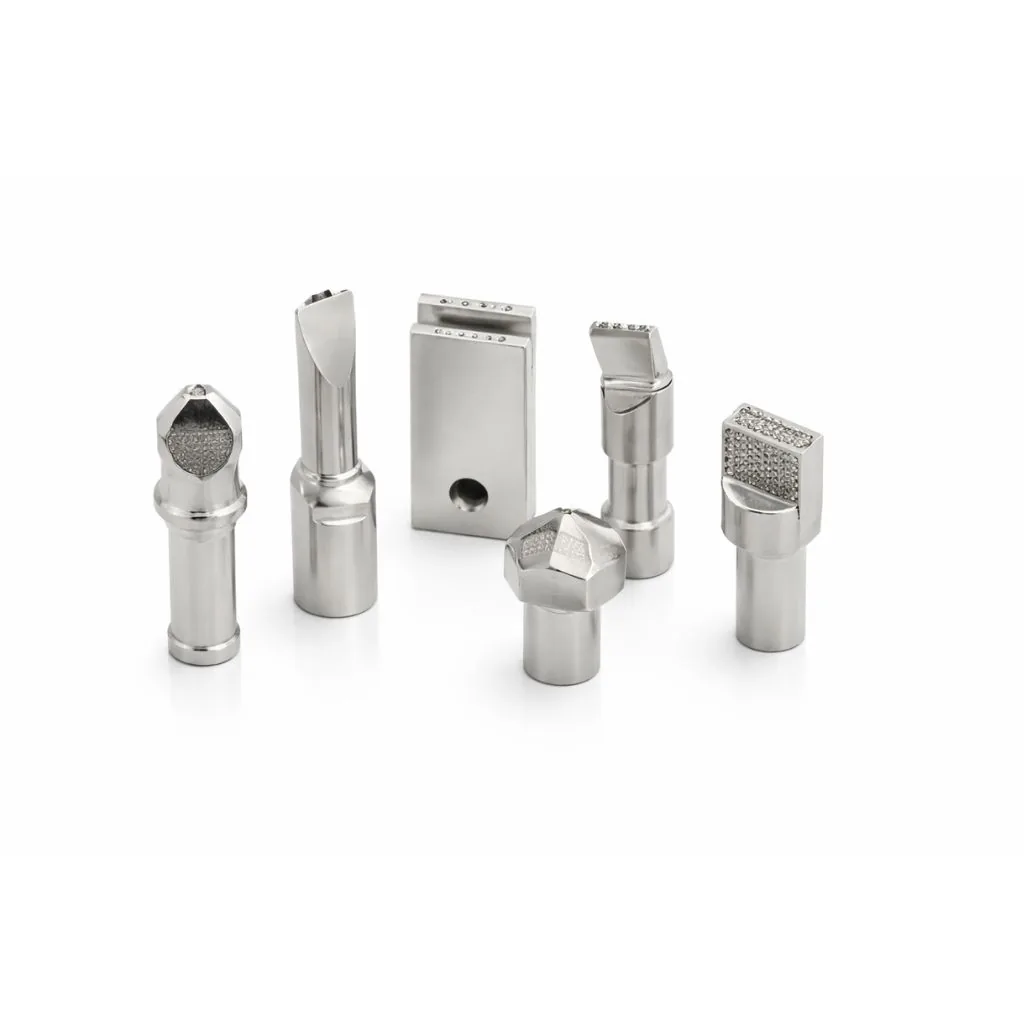

Static dressers – types

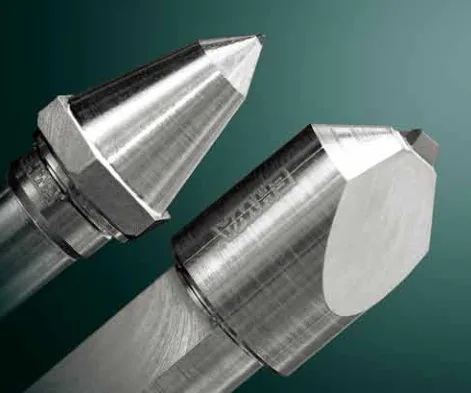

Form dresser
Application: conventional grinding wheels
Dressing capability: simple and complex wheel profiles, thread and gear profiles
Carat size: carat size and diamond shape engineered to the application
Diamond setting: natural diamond, monocrystal, CVD, PCD

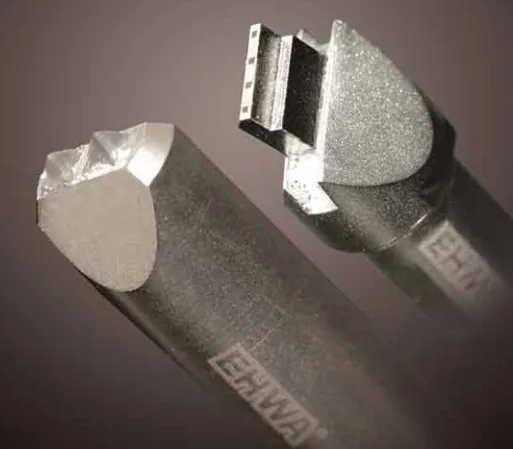

Multi-point dresser
Application: conventional grinding wheels
Dressing capability: straight-form grinding wheels, ideal for precise angular contours and angle profiles
Carat size: carat size and diamond shape engineered to the application
Diamond setting: natural diamond, CVD
More application areas

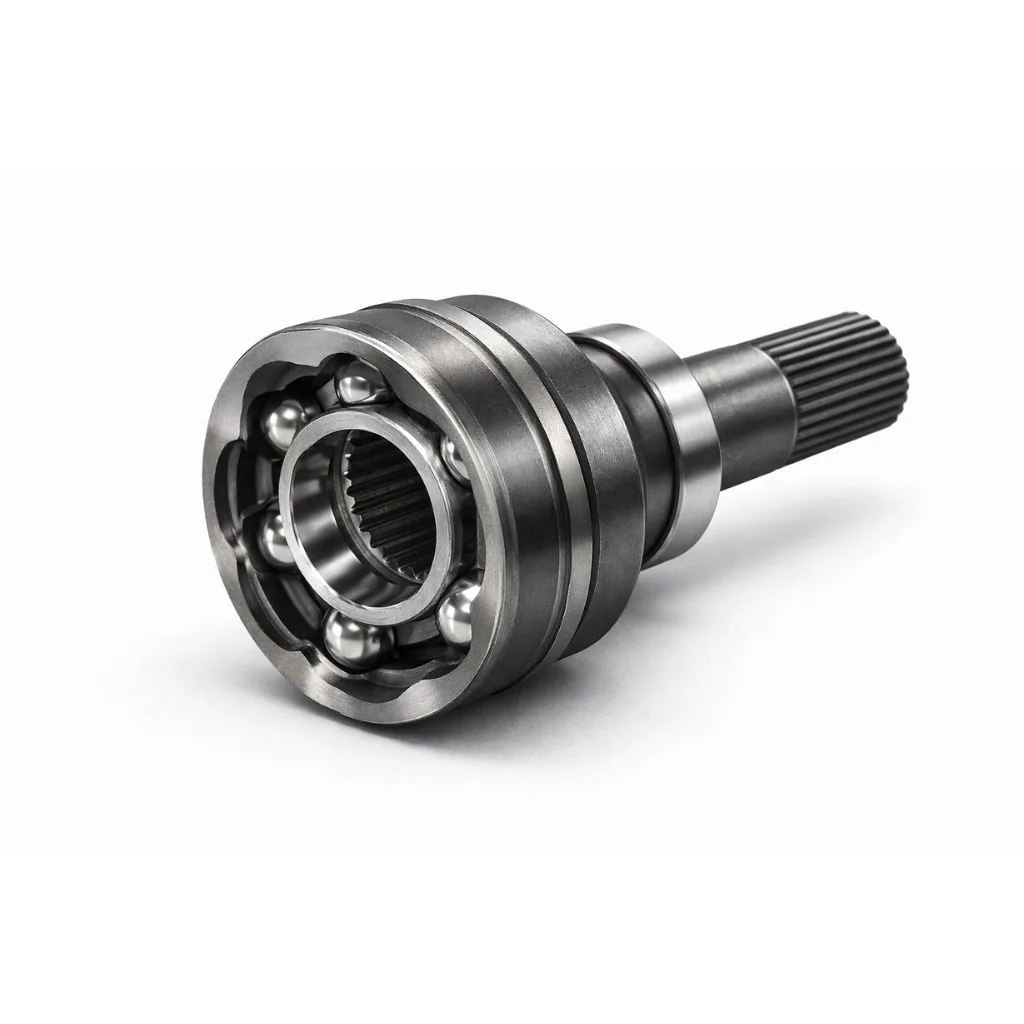

Diamond Dressing Roller – CV Joints
Profile dressing when grinding CV joint components, with customer-specific diamond dressing rollers.

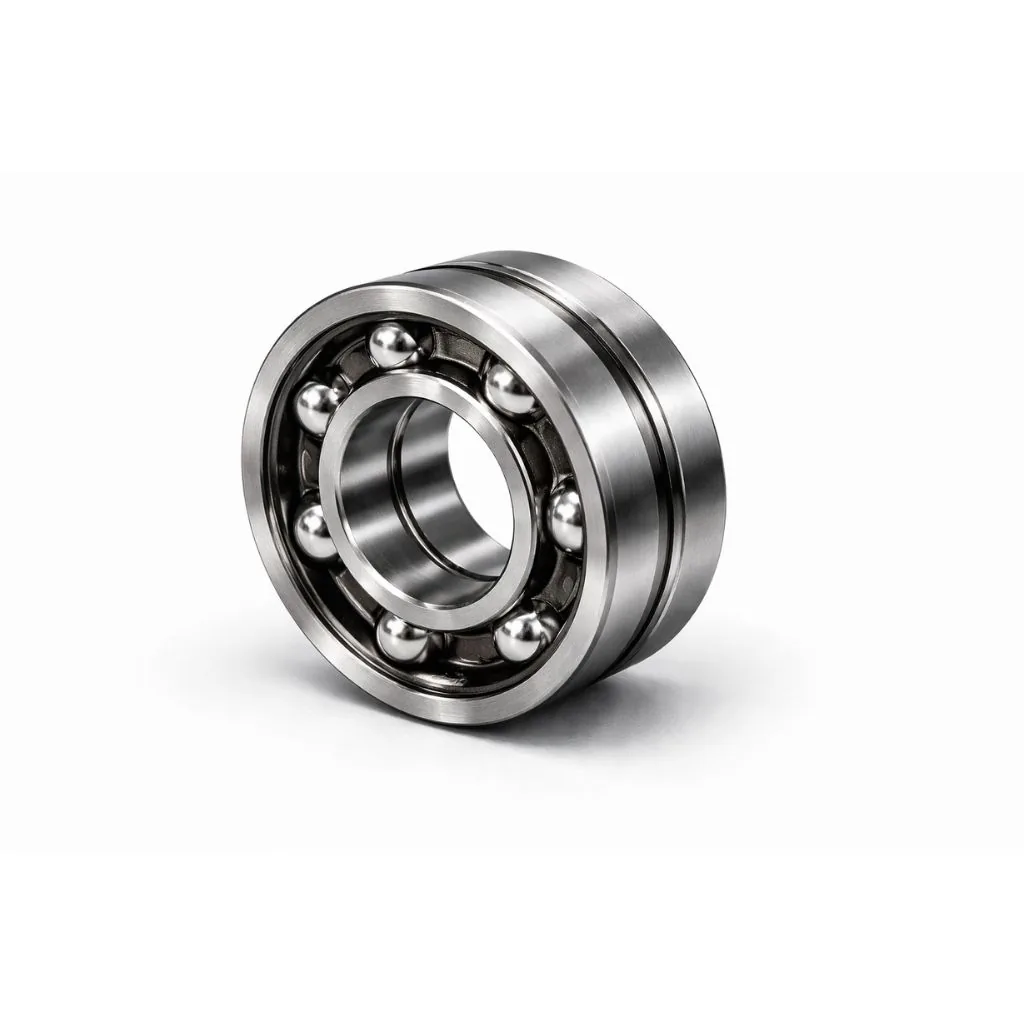

Diamond Dressing Roller – Bearing Grinding
Hand-set or electroplated negative diamond dressing rollers for raceway machining of rolling bearings.

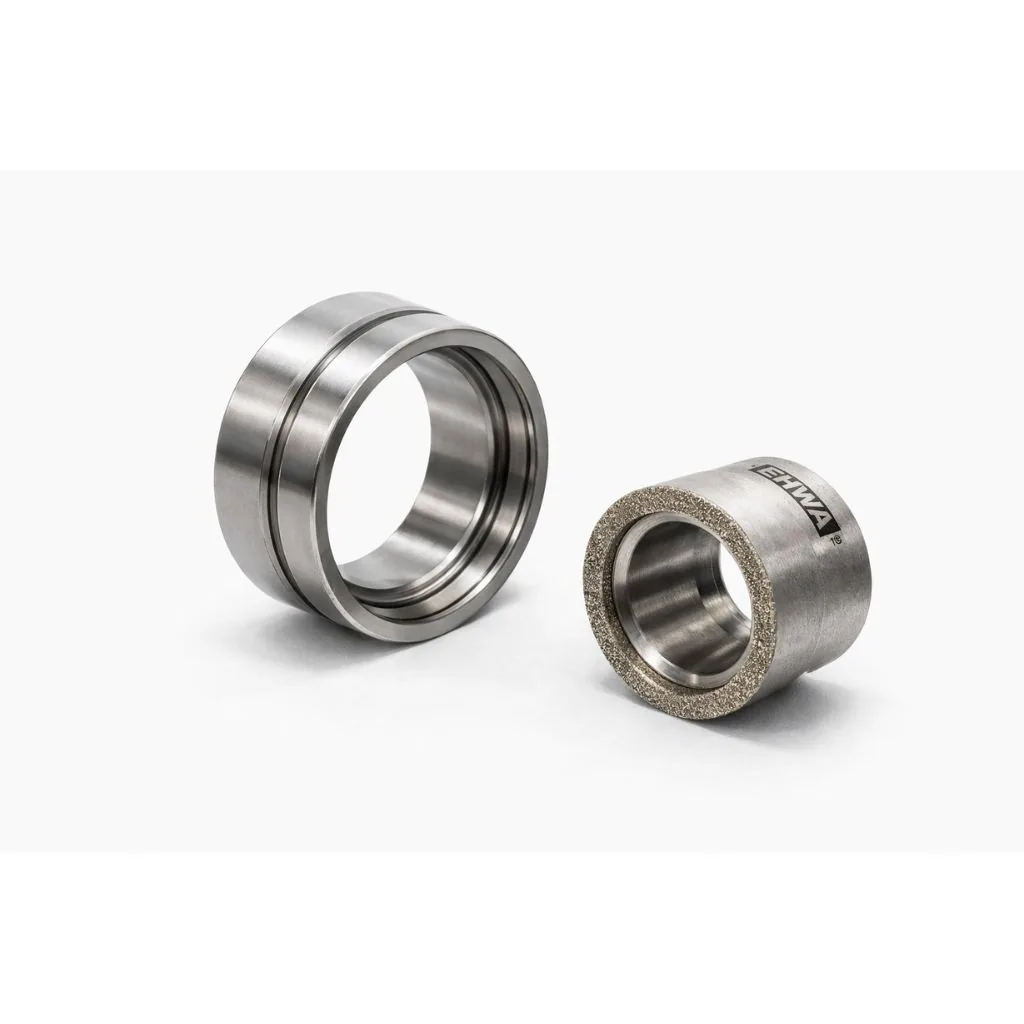

Metal-Bonded Cup Dressers – Bearing Grinding
EHWA cup dressers in metal bond for highly efficient dressing of very hard ceramic bonds.

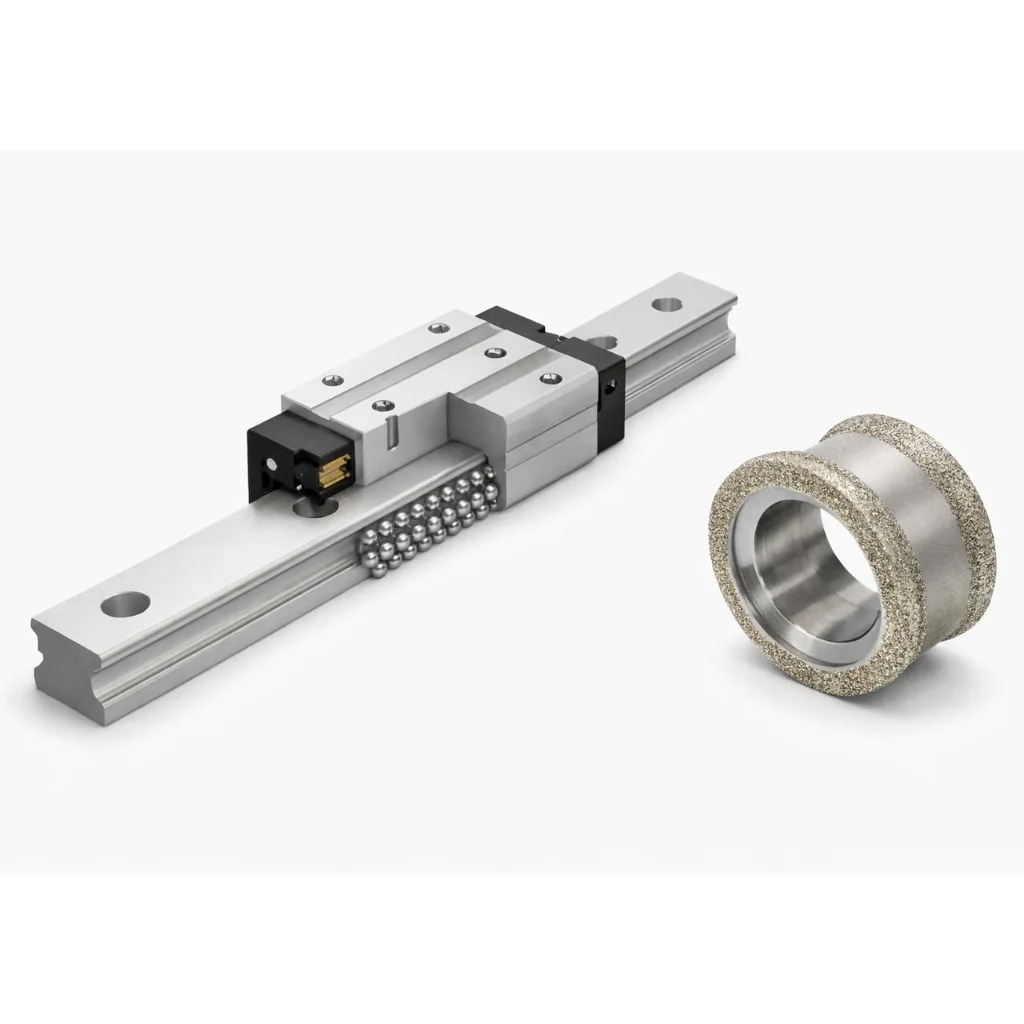

Diamond Dressing Roller – Linear Bearing Grinding
Electroplated negative diamond dressing rollers for profile rails and carriages of linear guides.

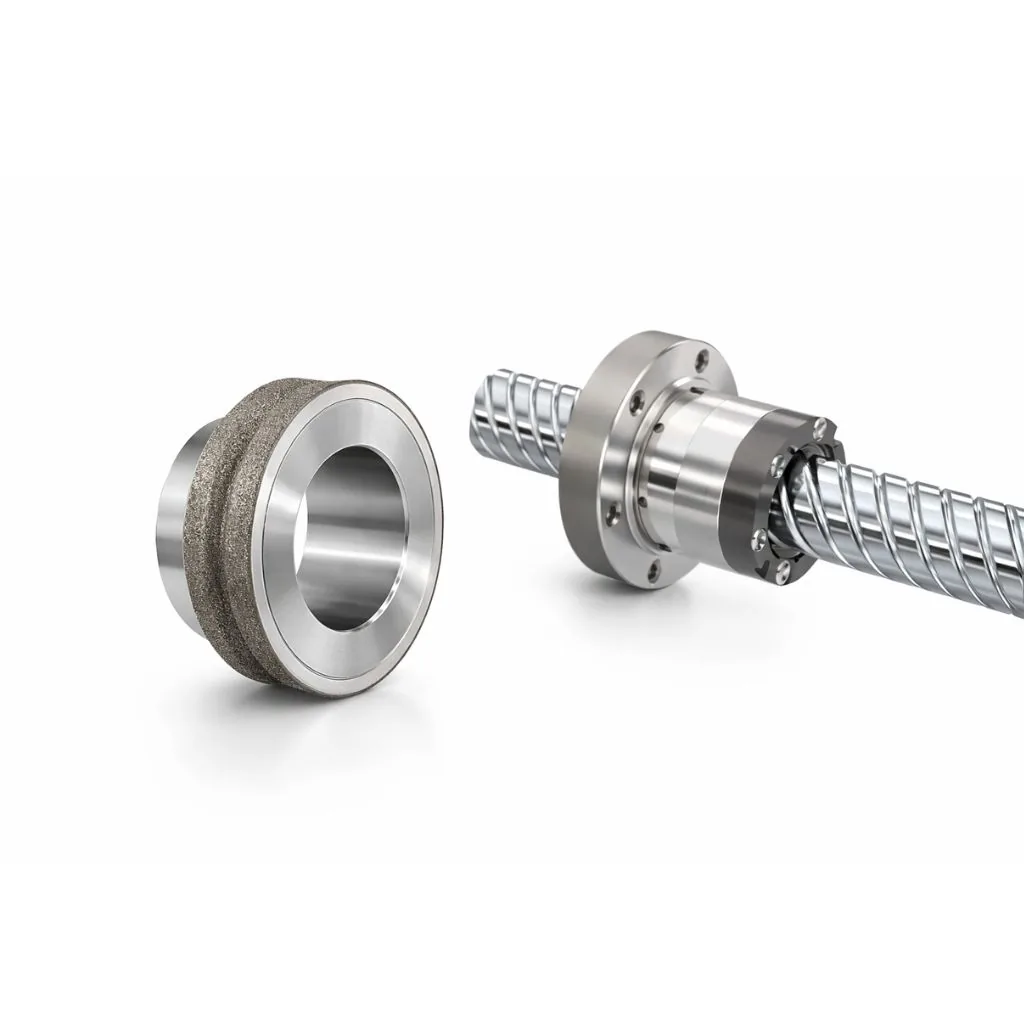

Diamond Dressing Roller – Ball Screws
Electroplated negative dressing rollers for high-precision grinding of ball screws.

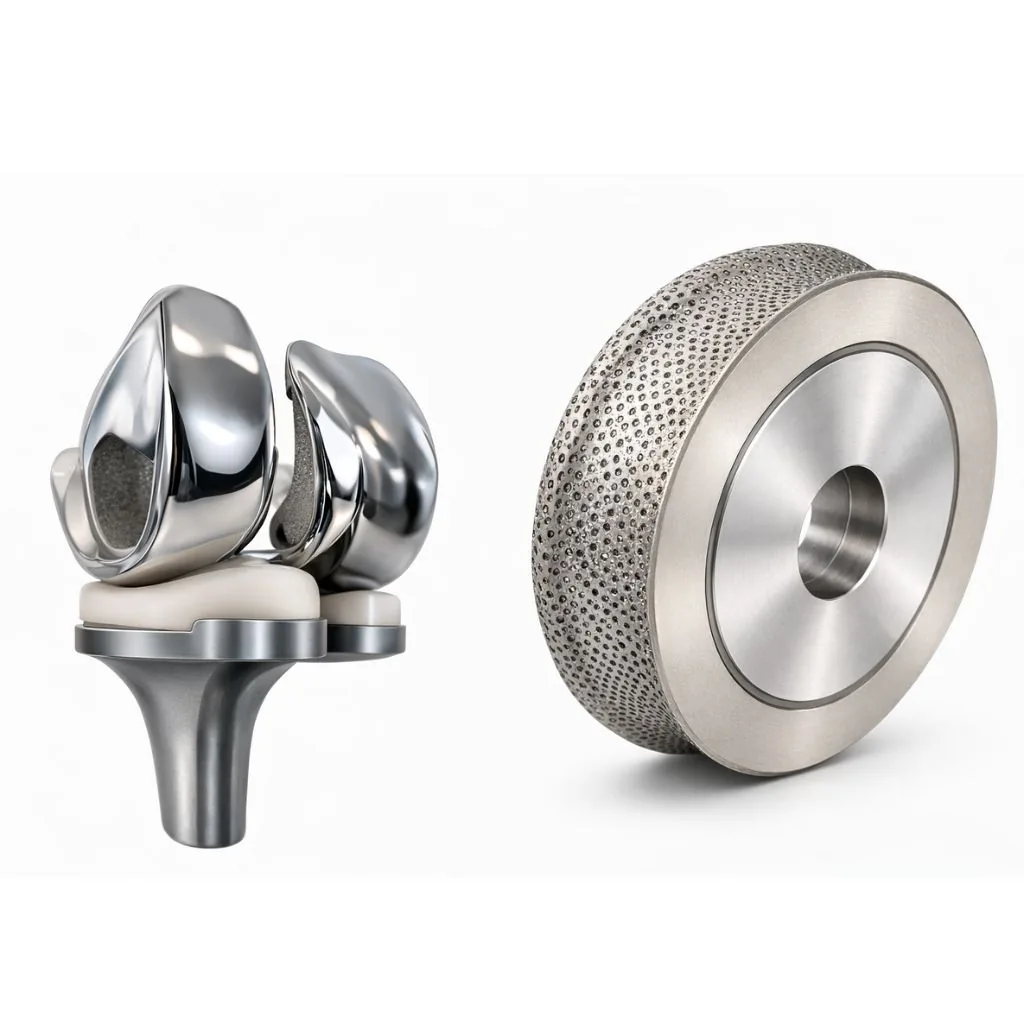

Hand-Set Profile Roller – Artificial Knee Joints
Hand-set diamond dressing rollers with CVD diamonds for machining knee implants made from cobalt-chromium alloys.

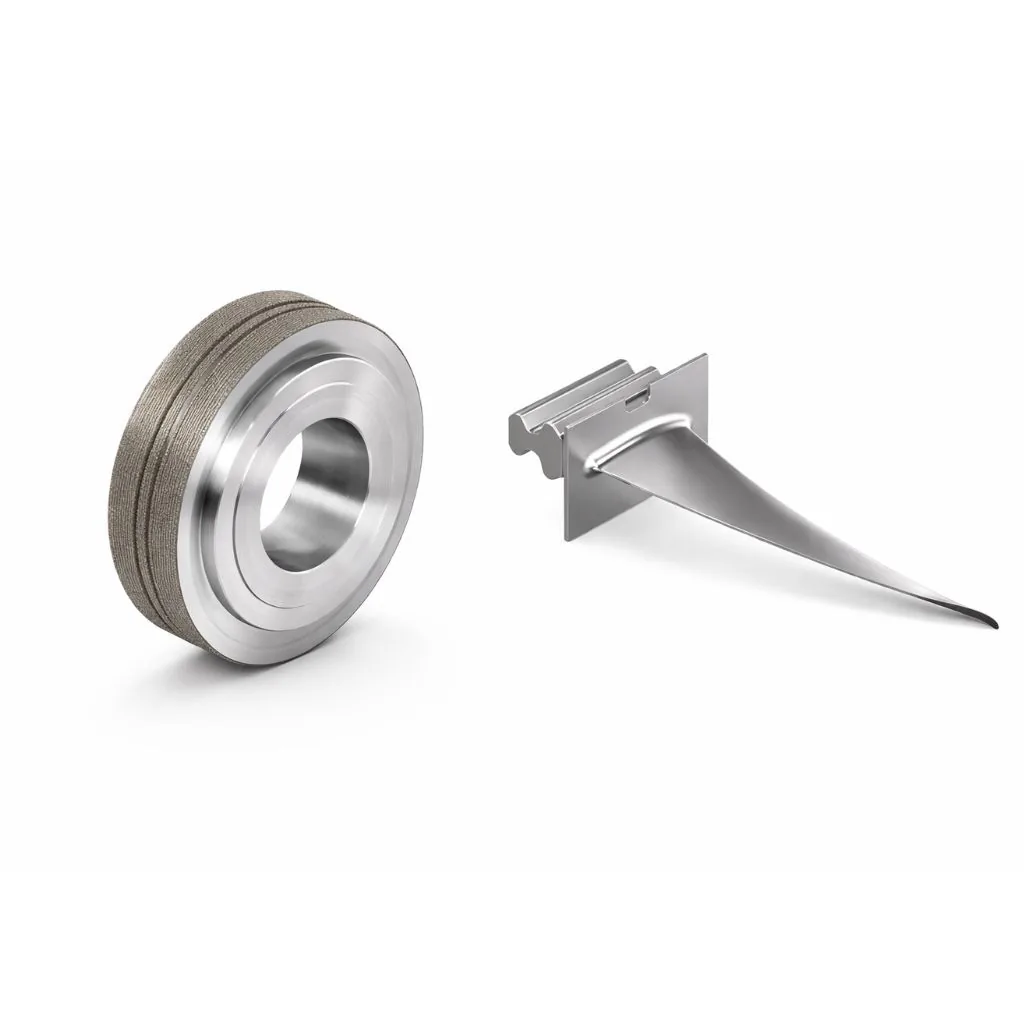

Diamond Dressing Roller – Turbine Blades
Electroplated negative dressing rollers for profile grinding of turbine blades made from nickel-based alloys.
Static Dressers in Detail
Single-point, form, multi-grain, and impregnated dressers compared – applications and available diamond grades.
Looking for the right dressing tool?
Type, diamond setting, and carat size are matched to your grinding wheel and process.
