Cartridge Milling Cutters – PCD/PCBN Edges

We specialize in the design and engineering of special milling and indexable inserts. Machining requirements range from simple to difficult-to-machine workpieces.

• Improved tool design for maximum productivity
• Regrinding and recoating service
• PCD / PCBN available in many grades
• Economical, reliable performance
• Long tool life
• Precise dimensional control

Customer-specific design

Our customers receive a tool tailored to their needs. Faces, shapes, chamfers, and profiles can be individually engineered by arrangement.

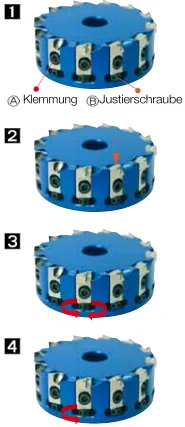

Cartridge milling cutter installation guide

1. Installing the cartridge: place the adjustment screw on the cutter body, insert the cartridge, tighten the clamping screw carefully.
2. Installing the screw: press the cartridge down while tightening, temporarily tighten the clamping screw to 3 Nm with a torque wrench.
3. Cutting height setting: turn the adjustment screw, set the face height to 10 µm from the target value.
4. Final setting: tighten the clamping screw to 10 Nm with a torque wrench, turn the adjustment screw the last 10 µm to the target height.

PCD milling cutters – shapes

PCBN milling cutters – shapes
